Chlorine Gas Cylinder
Description
55 years leading chlorine cylinders, ammonia cylinder,Acetylene cylinder, industry welding cylinder manufacturer, top quality at good price to increase your profit.
All you want to know about chlorine cylinders
Popular types of chlorine gas cylinder in the Market
High pressure seamless chlorine cylinders

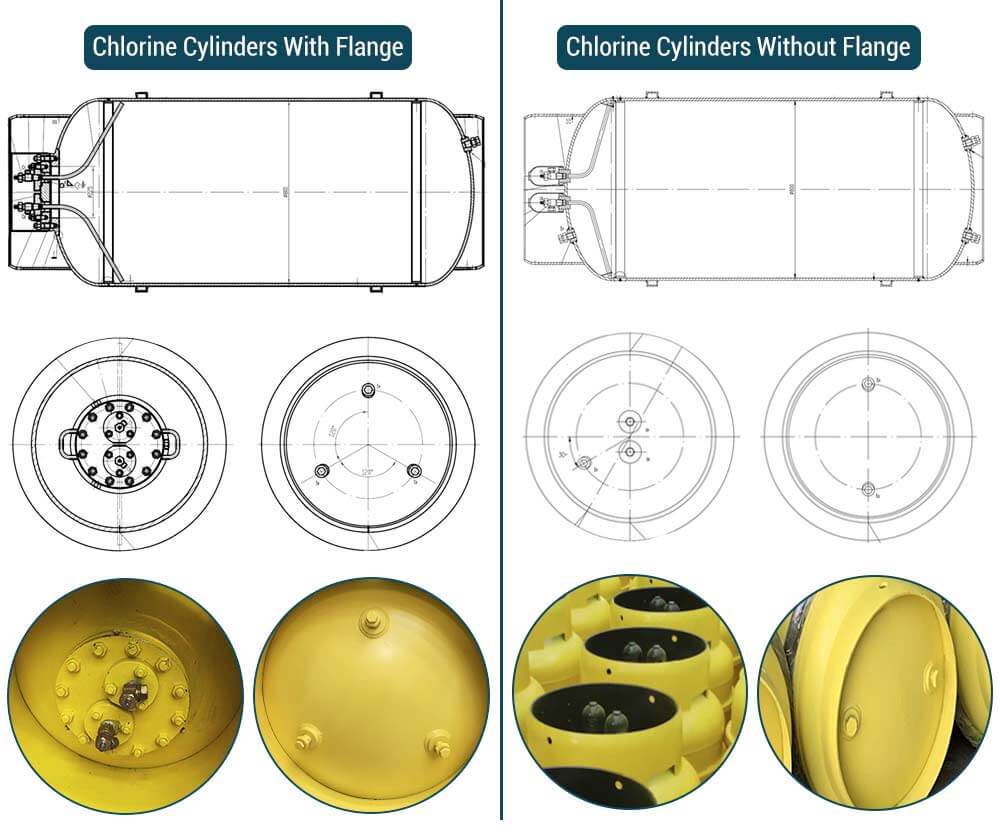

Welded Chlorine Cylinders
Get a Quote
Get A Free Quote
Need more help?
Don’t hesitate to contact us for more information.
+966565100410
Info@pureair-gas.com
Why chlorine cylinder with fusible plugs?
“Fusible plug” is a kind of safety device installed to make the cylinder, and pressure vessel safe.
Working principle: liquid chlorine cylinder fusible plug melting temperature of 65 ℃, the use of low melting point alloy melting at a higher temperature, open the channel so that the chlorine gas from the original filling of the fusible alloy of the air to discharge the pressure
We are a professional manufacturer of liquid chlorine cylinders, ammonia cylinder, acetylene cylinders ect. with a history of more than 60 years and can customize according to customers’ requirements. In addition to the above common specifications of liquid chlorine cylinders, if you need other specifications, please provide us with detailed drawings or pictures of the products, indicating the water volume, working pressure, etc., and we will design for you professionally.
150lb Chlorine Cylinder
- Standard: DOT 3AA
- Max filling Capacity: 70kg / 150lb
- Water Capacity: 54 L
- Working Pressure: 150bar (2175psi)
- Test pressure: 250bar (3625psi)
- Material: 37Mn
- Thead Valve Standard: CGA /DIN/GB/EN/BS/ANSI
900kg Chlorine Cylinder
- Standard: ISO/GB/ASME
- Max filling Capacity: 900kg
- Water Capacity: 720L
- Working pressure: 300bar
- Test pressure: 450bar
- Material: HP345
- Thead Valve Standard: CGA /DIN/GB/EN/BS
1 ton chlorine cylinder
- Standard: ISO/GB/ASME
- Max filling Capacity: 1000kg
- Water Capacity: 800L / 840L
- Working pressure: 300bar
- Test pressure: 450bar
- Material: HP345
- Thread Valve Standard: CGA /DIN/GB/EN/BS/ANSI
